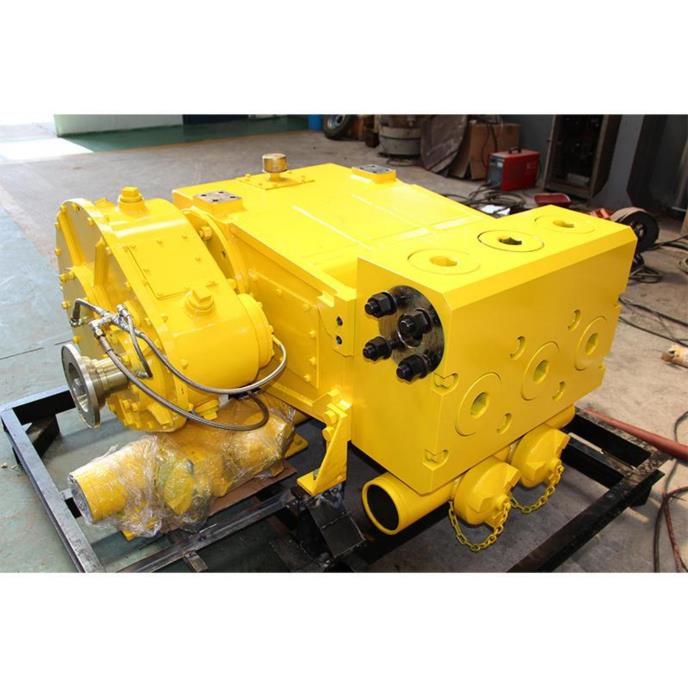

600S Triplex Plunger Pump
600S Triplex Plunger Pump is a classic pump developed from the Practical experience and applicable for Fracturing, Cementing, Sand
proof, acidizing etc. small scale fracturing operation. This Pump is directly connected with the plunger and the cross head which reducing
the pump's length so that it is widely used in duplex double pump cementing truck or skid. The pump can be disposed on the device so that
the pipe layout is simple and beautiful, the operation is convenient and so on.
|
Max.Power Braking |
600HP (447KW) |
|
Max. Connecting rod Load |
100,000 lbf (445KN) |
|
Stoke |
6” (152.4mm) |
|
Driving Model |
Double cylinder oblige gear transmission |
|
Speed rations |
4.6:1 |
|
Dimension L×W×H mm |
51.17*55.84*26.9 in. (1,299*1,418*683mm) |
|
Weight |
4,600 lbs (2,,086Kg) |
