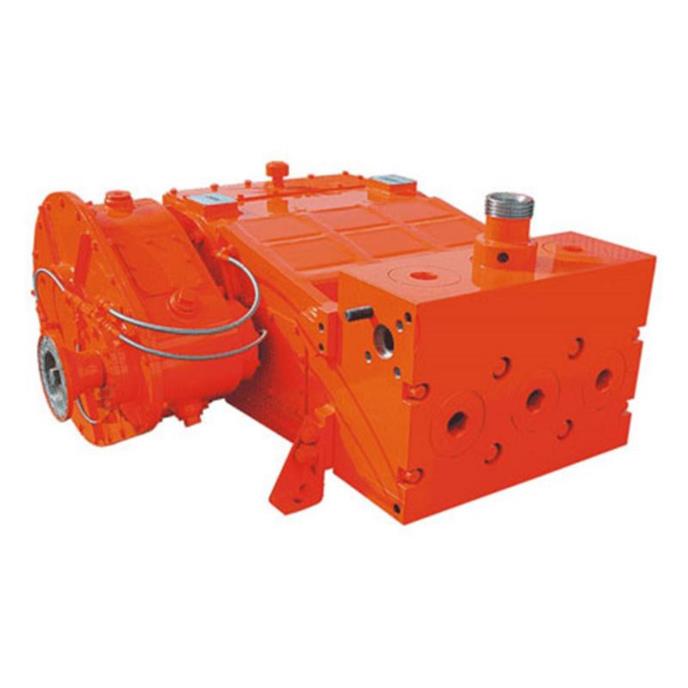

1000 Triplex Plunger Pump
Model 1000 Pump is directly connected with the plunger and the cross head which reduce the pump's length
so that it is easy to layout on the device
|
Max.Power Braking |
1,000HP (746KW) |
|
Max. Connecting rod Load |
100,000 lbf (445KN) |
|
Stoke |
6” (152.4mm) |
|
Driving Model |
Double cylinder oblige gear transmission |
|
Speed rations |
4.61:1 |
|
Dimension L×W×H mm |
74.6*50.8*31.1 in. (1,895*1,292*792mm) |
|
Weight |
7,231lbs (3,280Kg) |
