API B Serie Pumping Unit

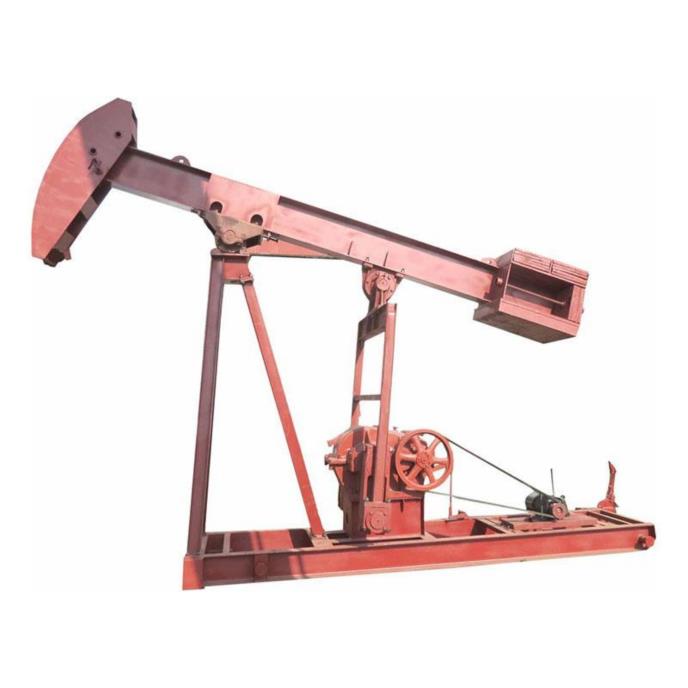

APl B Series Pumping Unit is conventional walking beam pumping units
It's a common type of power equipment on the groud used in rod oil extraction.
The product conforms to the APl 11E
1. Hight reliability,simple operation,easy maintenance,long service life
2. Gear reducer is involute herring-bone gearing,work smoothy and reliably.
3. The complete machine with light weight, it's convenient for installation and transportation
|
No. |
Type |
Polished Rod Capacity (lb) |
Stroke Length (in) |
Rated Torque (in. lb) |
|
1 |
B-80D-119-64 |
11,900 |
64、54 |
80,000 |
|
2 |
B-80D-76-64 |
7,600 |
64、54 |
80,000 |
|
3 |
B-80D-133-54 |
13,300 |
54、41 |
80,000 |
|
4 |
B-80-119-54 |
11,900 |
54、41 |
80,000 |
|
5 |
B-80D-76-54 |
7,600 |
54、41 |
80,000 |
|
6 |
B-80D-133-48 |
13,300 |
48、35 |
80,000 |
|
7 |
B-80D-109-48 |
10,900 |
48、35 |
80,000 |
|
8 |
B-57D-109-54 |
10,900 |
54、41 |
57,000 |
|
9 |
B-57D-89-54 |
8,900 |
54、41 |
57,000 |
|
10 |
B-57D-76-54 |
7,600 |
54、41 |
57,000 |
|
11 |
B-57D-109-48 |
10,900 |
48、35 |
57,000 |
|
12 |
B-57D-95-48 |
9,500 |
48、35 |
57,000 |
|
13 |
B-57D-89-48 |
8,900 |
48、35 |
57,000 |
|
14 |
B-57D-89-42 |
8,900 |
42、32 |
57,000 |
|
15 |
B-40D-89-48 |
8,900 |
48、35 |
40,000 |
|
16 |
B-57D-76-42 |
7,600 |
42/32 |
57,000 |
|
17 |
B-40D-76-42 |
7,600 |
42、29 |
40,000 |
|
18 |
B-25D-67-36 |
6,700 |
36、27 |
25,000 |
|
19 |
B-25D-53-30 |
5,300 |
30/23 |
25,000 |
|
20 |
B-16D-53-30 |
5,300 |
30、23 |
16,000 |
