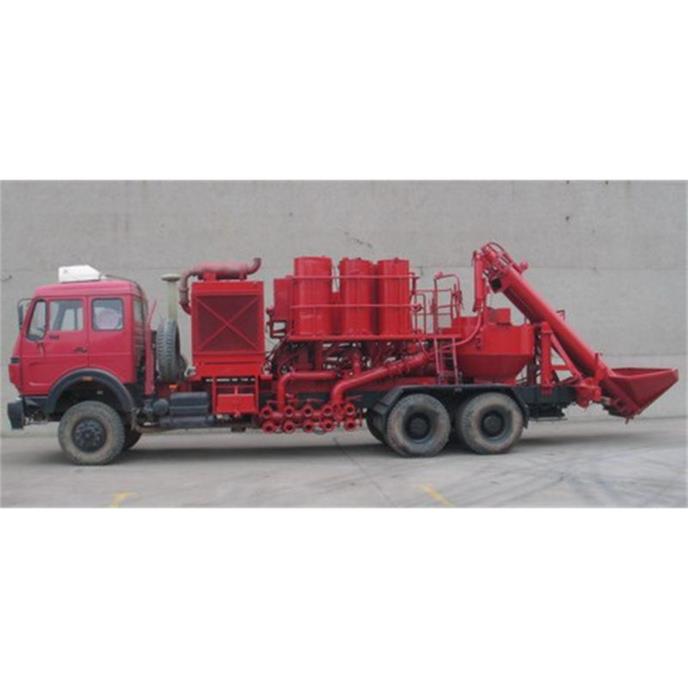

Blender Truck
Based on the second-class chassis, the truck is refited by adding platform, engine, driving svstem, hydraulic system, iquid-add system
dry-add system, sand conveying system, blending tank and other special equipment,it is mainly used for oi-gas field wellfracturing
1.Fully hydraulic drive to realize sand mixed in proportion.
2.Large displacement, high control precision, mixture evenly
3.Multiple double suction and double exhaust manifold meet the reguirements of various fracturing operation
|
Max. clear water displacement |
16m3/min |
|
Max. clear water pressure |
0.7 Mpa |
|
Max. sand conveying capacity |
10000kg/min |
|
Dry-chemical additives displacement |
0～100L/min |
|
Liquid additives displacement |
0～500L/min |
|
Blending tank volume |
1.4m3 |
|
Control mode |
Local, remote |
